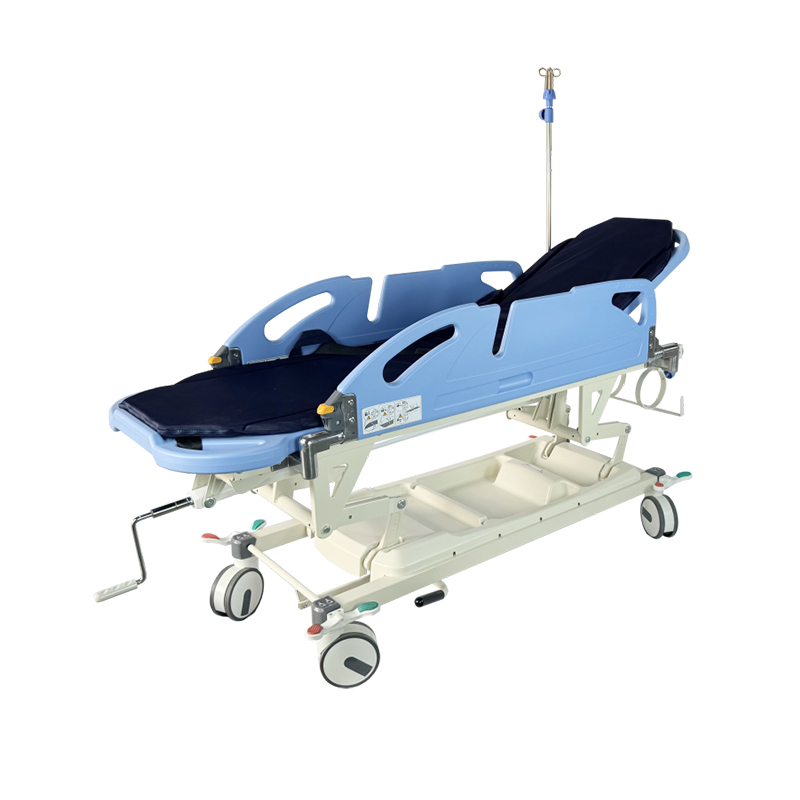

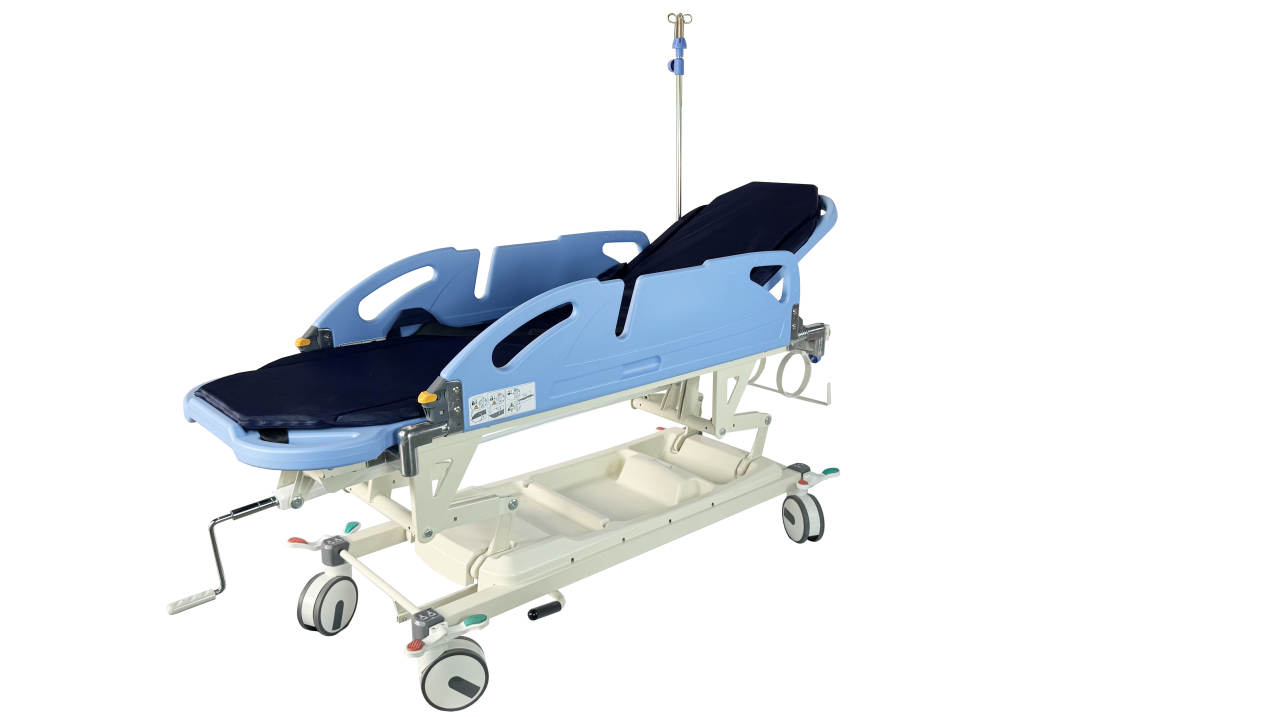

Deluxe Patient Stretcher
Model: SA-TF4
SA-TF4 is a manual patient transfer stretcher with adjustable height and elegant extra-long railing for great safety
during transportation.
TECHNICAL PARAMETERS

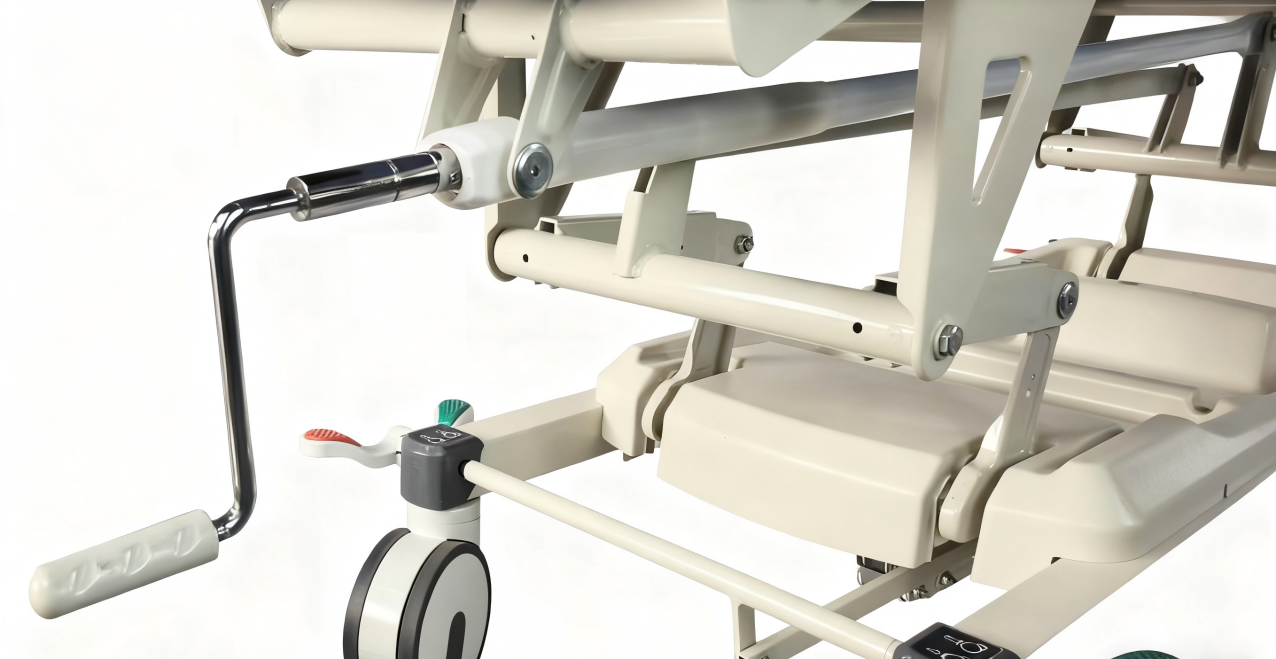

- Deluxe Patient Stretcher, height adjustment via control lever: clockwise rotation raises the chassis, counterclockwise rotation lowers the chassis;
- Clear arrow markings guide user operation;

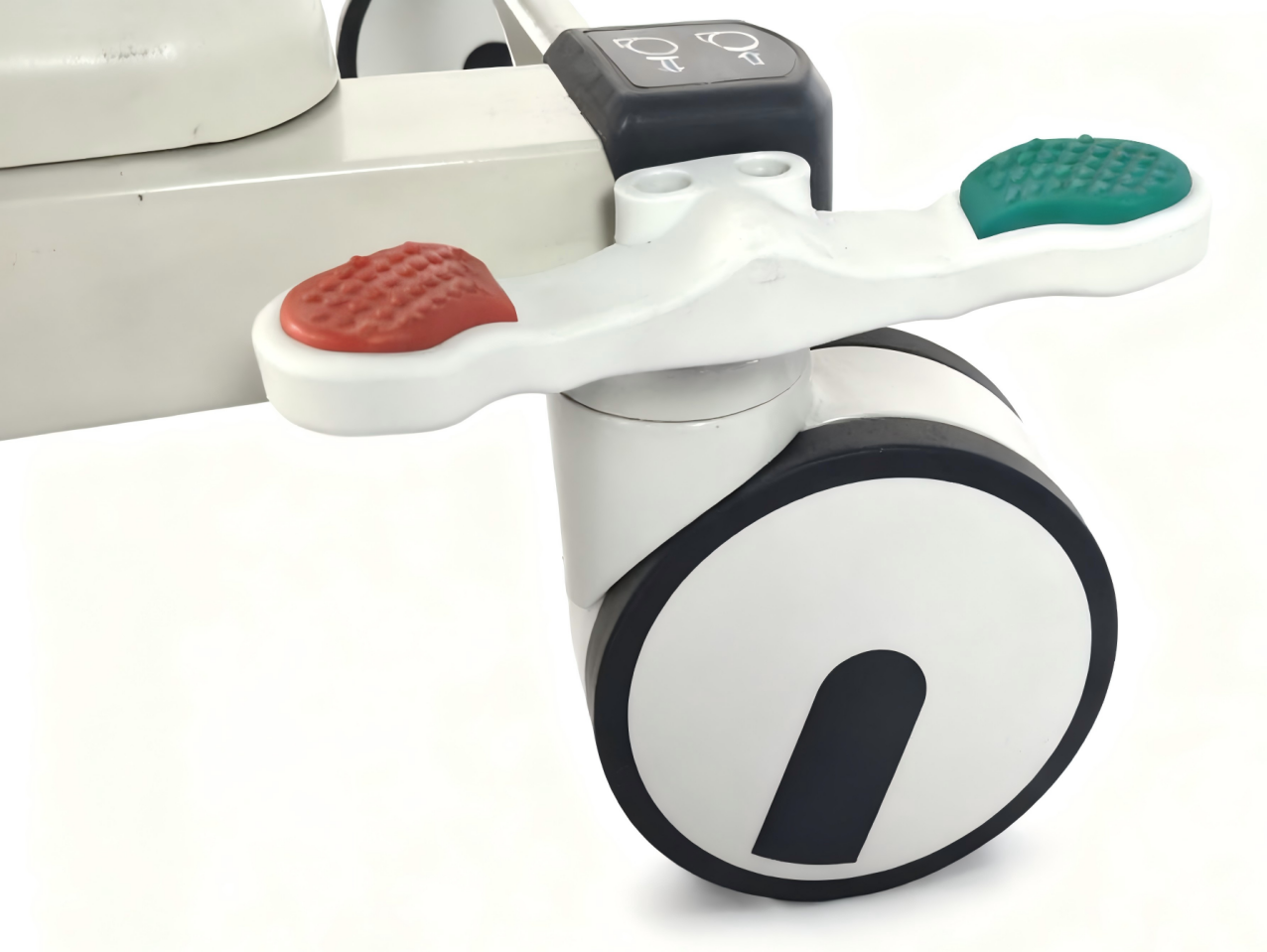

- Central control casters, diameter 150mm, equipped with a fifth central guide wheel for effortless steering control;

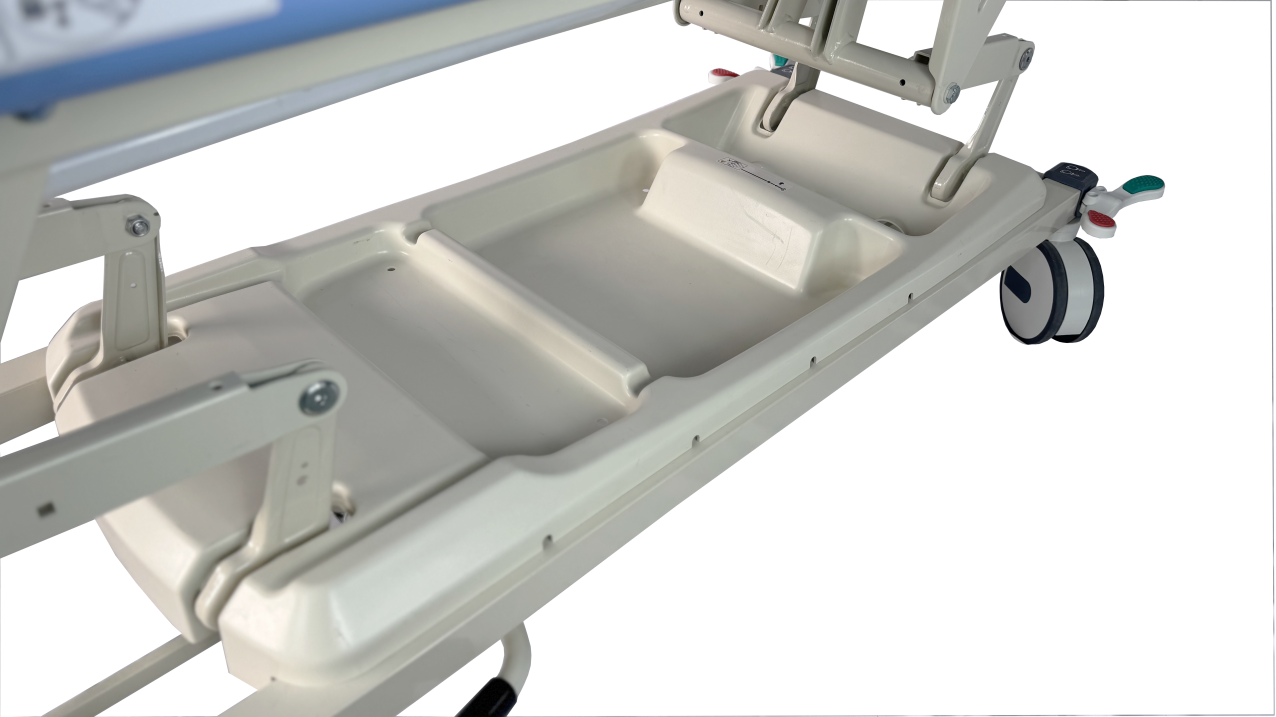

- Expanded storage space provided by the chassis cover section;
- Specifications:
- Overall dimensions: 1930*663*510-860mm
- Height adjustment (bed panel to ground): 510-860mm
- Bed surface dimensions: 1900*640mm

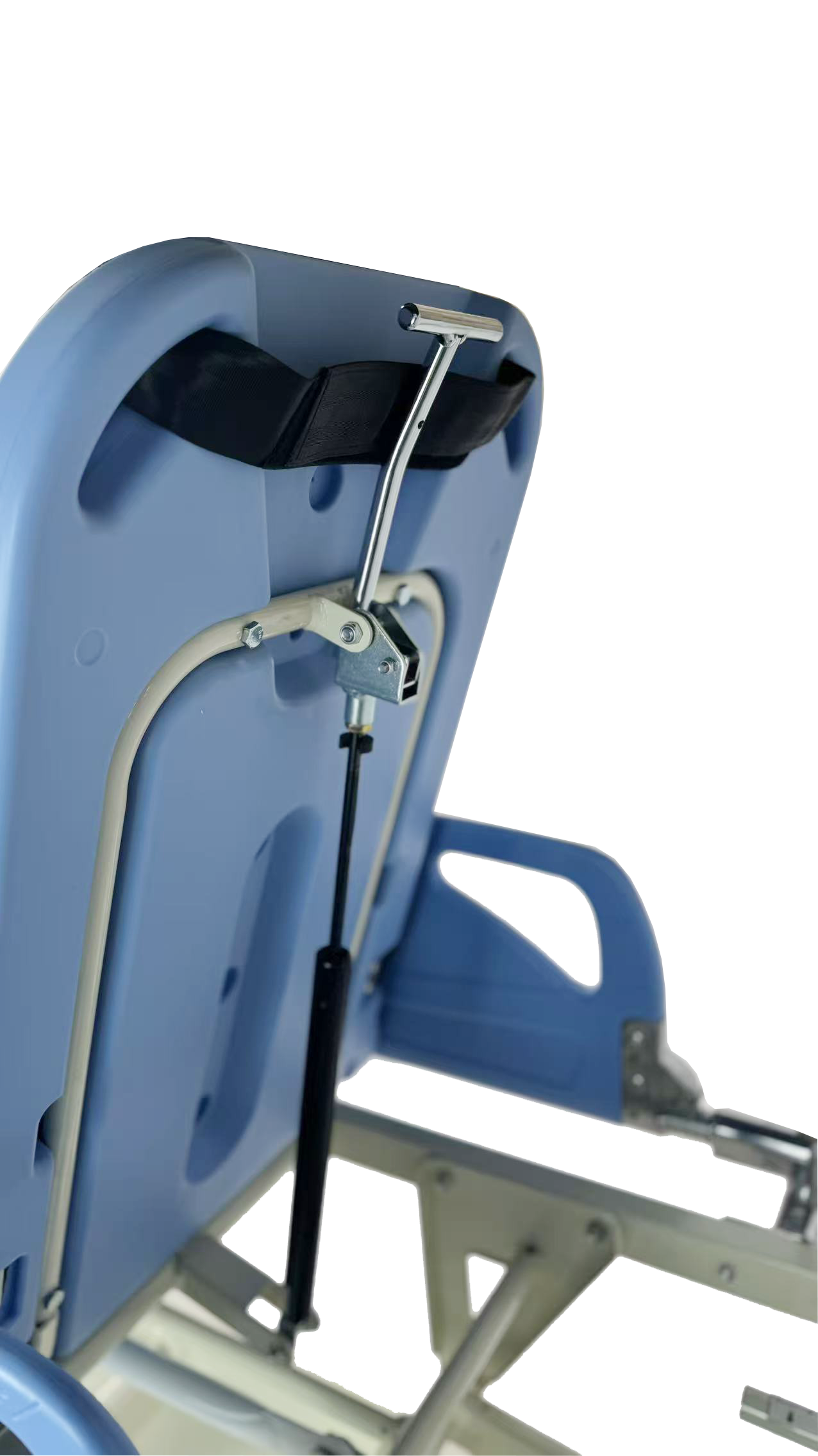

- Backrest angle: 0-75°

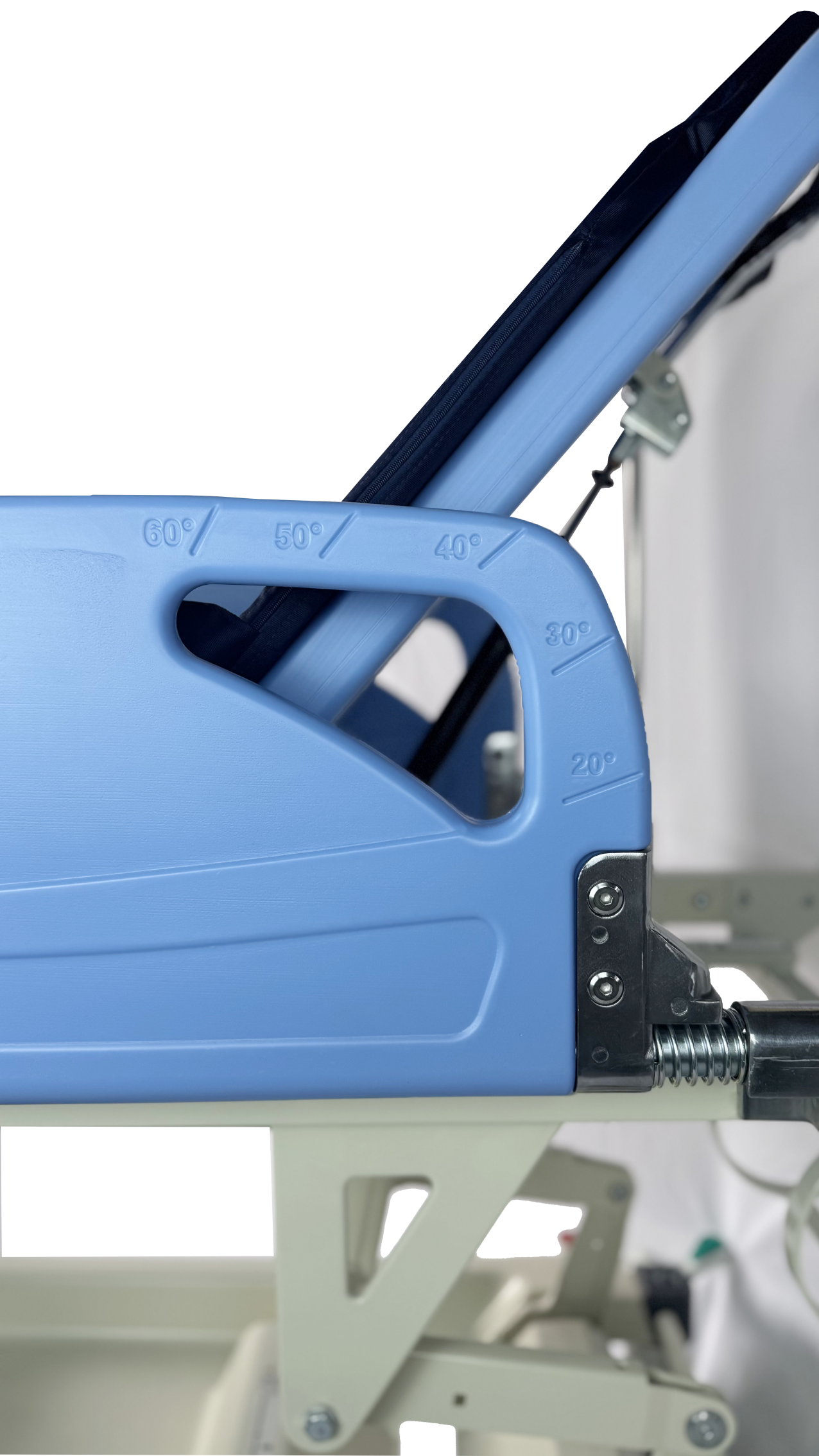

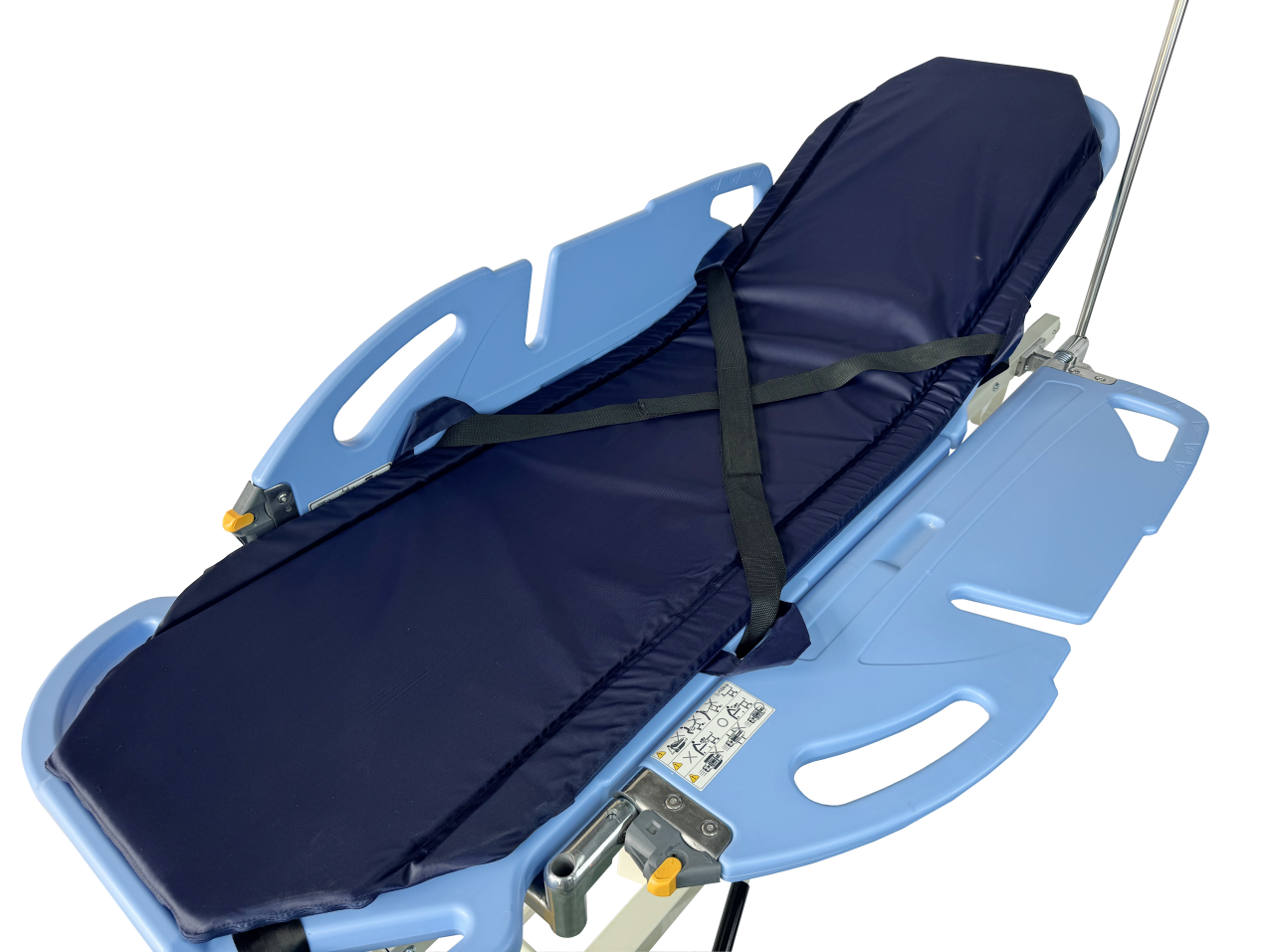

- Multi-functional rotary flip side rails, manufactured through one-piece blow molding with PP material. The side rail can be unfolded as a transfer board during patient transfer and flipped to a horizontal locked position to expand bed width;
- One-piece blow-molded PP bed panel, easy to clean;
- N.W: 70KG G.W: 100KG
- Packaging dimensions: 1970*820*630mm
- Standard accessories: Oxford fabric mattress, IV pole
