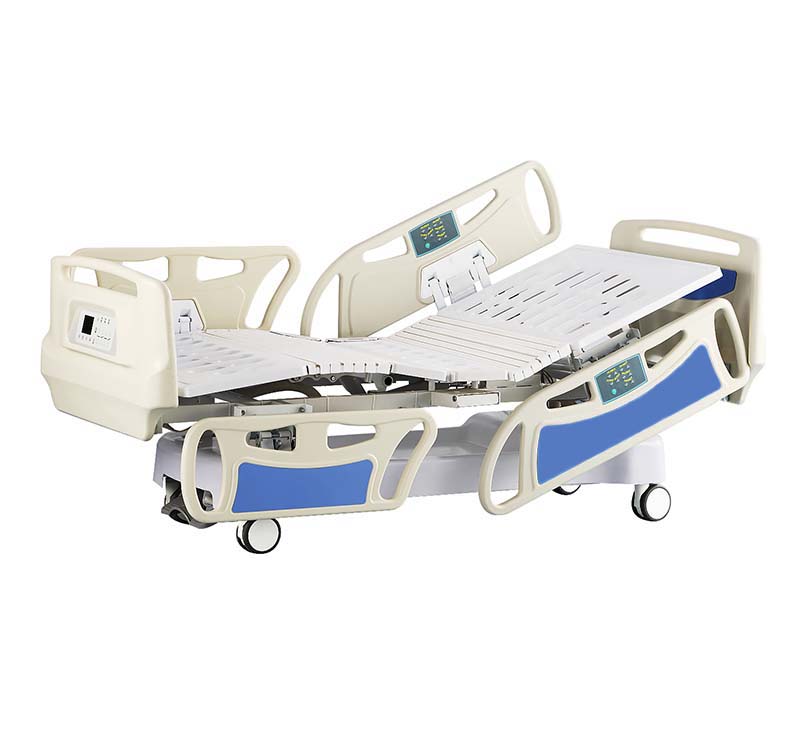

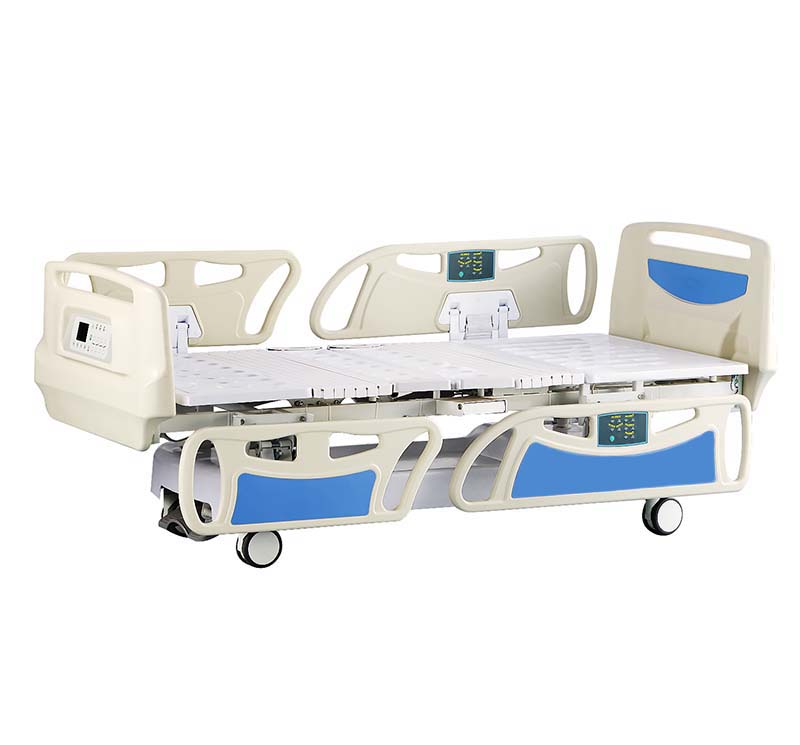

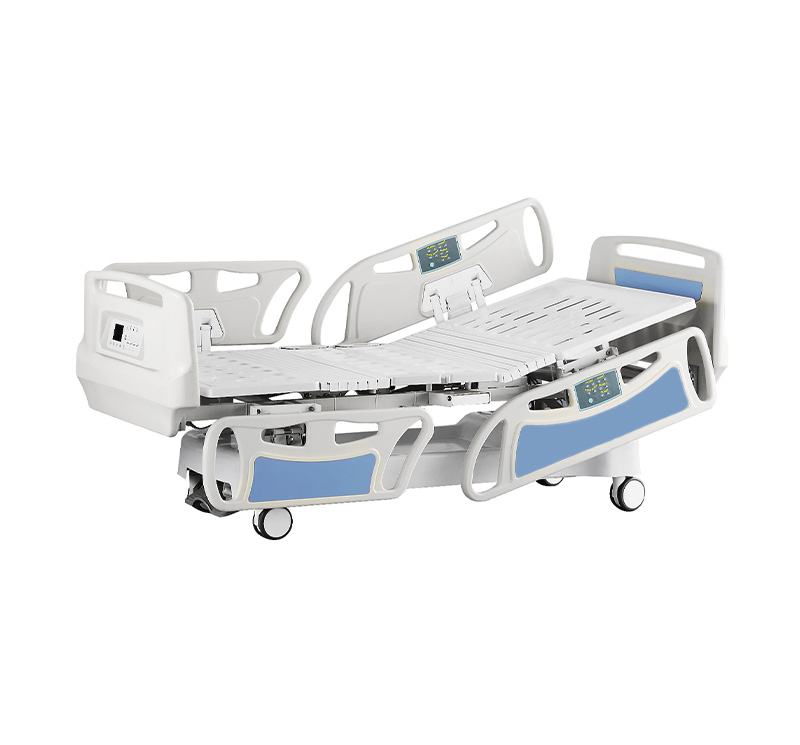

Automatic Hospital ICU Bed With Weighing Scale
Model: SAJB-2
PRODUCT FEARURE
- Four split side rail, drop down rails
- Incorporated railing control with easily identifiable icon
- Nurse control incorporated in foot panel with LED display for moving state
- Detachable head/footboard with easy lock
- Central brake system with a wheel diameter of 150mm
- Manual CPR on both sides
- Bumper caster on four corners
- Auto-regress to remove the pressure of the abdomen when adjusting the backrest
- Auto-counter to provide the patient from sliding onto foot end
- Full-body X-ray translucent bed borad, leg move function
- With base chassis cover
- Electric CPR
- Direction wheel function(optional)
- Weighing function(optional)
- With angle indicator embedded in the railing for back and Trendelenburg adjustment(optional)
- Backrest, Footrest, High-low, Trendelenburg, Reverse Trendelenburg
TECHNICAL PARAMETERS
| Overall size | 2200*1060 *520mm (86.5″ x 42″ x 20.5″) |
| Lying size | 1900*900 mm (75″ x 35.5″ ) |
| Height adjustment | 520-770mm (20.5″ – 30″ ) |
| Back section up/down | 0-75° |
| Foot section up/down | 0-40° |
| Trendelenburg | 0-12° |
| Revere- Trendelenburg | 0-12° |
| Safe Lowading capacity | 225kg（495 Ibs） |
| Caster | 150mm, 6 inch |
