Examination Table

Mechanical gynecological examination table

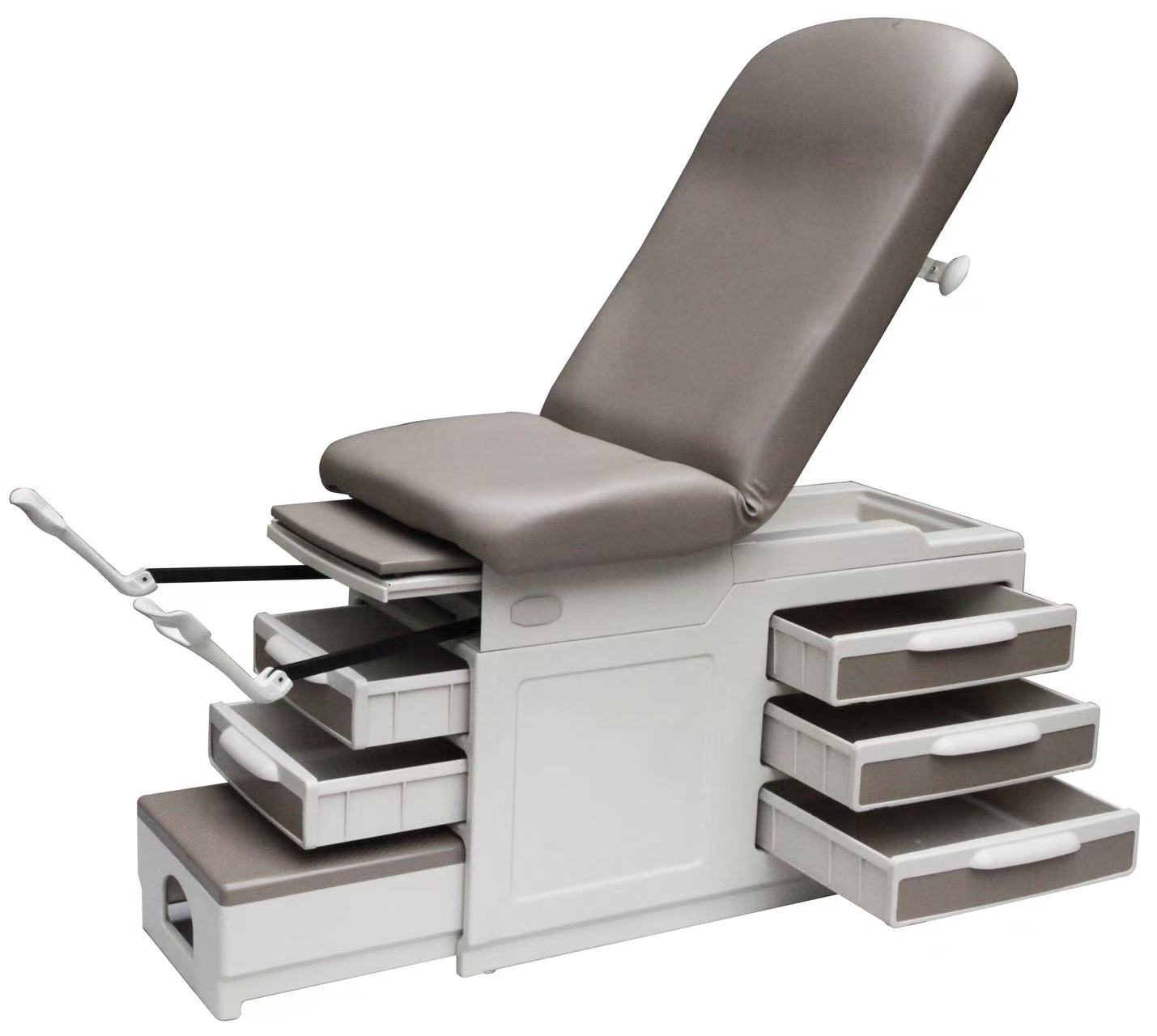

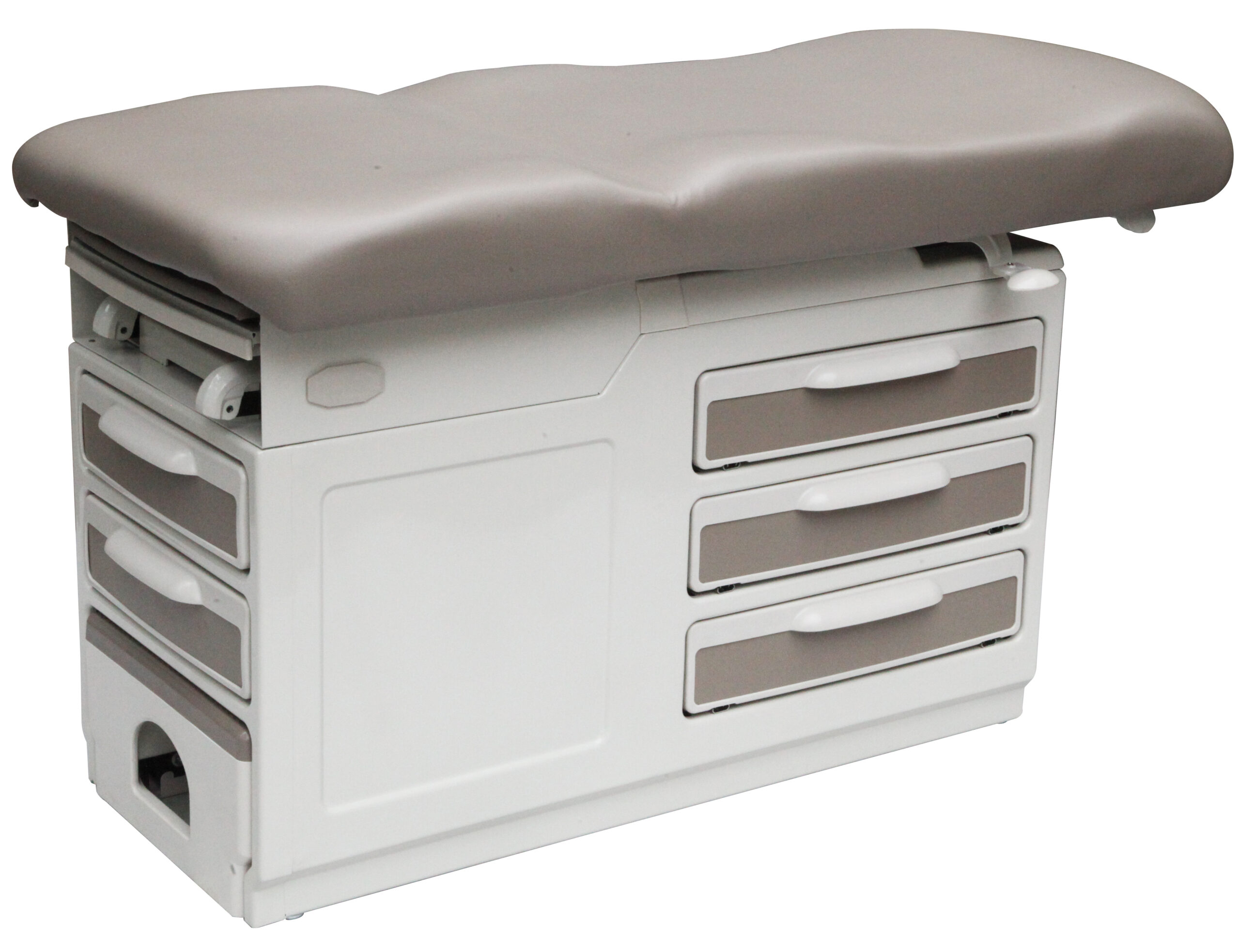

Mechanical Gynecological Examination Table

Model: SA-J-4

PRODUCT FEARURE

  • Suitable for various examinations, including gynecological check-ups and surgeries.
  • The bed body is made of high-quality steel plates with a spray-coated finish.
  • The base of the bed is equipped with a leveling adjustment function.
  • The backrest is equipped with a paper roll holder at the rear, facilitating the use of disposable sheets by medical staff.
  • Foldable&extended leg plate is designed to be foldable.
  • A hidden footstep located at the front.
  • ABS footstep surface
  • The backrest adjustment is controlled by 2 silent gas springs
  • An integrated design combines a hidden auxiliary table and a waste basin. Both the table surface
  • The basin can be extended flexibly and easily detached during operation, facilitating waste disposal.
  • The seat plate features a manual independent tilt function

Color can be customized ( Black,brown blue,red)

TECHNICAL PARAMETERS

Overall size 1520mm × 740mm × 900mm
Maximum backrest elevation angle: 70° ± 5°
Maximum seat plate elevation angle 7° ± 2°
Footrest dimensions 450mm × 230mm
Maximum load capacity 220 kg
