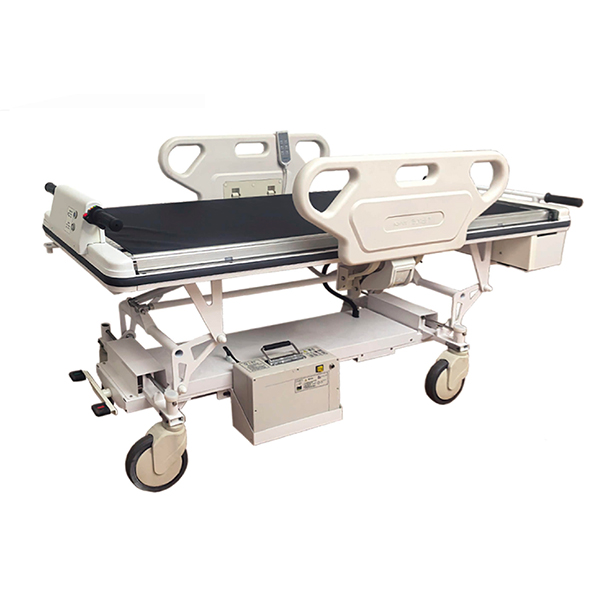

Roll in & OutElectronic Trasnfer Stretcher
Model : SA-TF13
The transportation of patients (such as cerebral hemorhage, fracture, postoperative or obesity) has always been adifficult problem for medical staff. How to ensure the patients pass through the tables and be transported smoothly and safely?Medical Electric Transfer Vehicle can successfully solve this problem.
Double layers transfer board with transfer cloth,electrical panel control, and electrical lifting up/down, enables patients
to pass through tables automatically, no need manual moving, avoid second injuries, reduce medical disputes, laborintensity, and occupational injuries among medical staff.
Electrical assistant system (Assist/guide wheel with electriclifting) and reliable electrical brake to ensure single personto move the vehicle safe & easily.
Fold-able & slowing down guard rail.
500mm more transfer board, self-adjustable transfer cloth.
Optional soft warm mattress.
PRODUCT FEARURE
SA-TF13, its extension distance of transfer board exceeding 500mm, to ensure patient transportationcompleted on all beds and carts, no need of any manual movement.
One pair connecting configuration, suitable for use in high-level purification operatingdepartments.
Imported casters, electrical assistant system (Assist/guide wheel with electric lifting.and reliable electrical brake to ensure single person to move the vehicle safe & easily.
Optional soft warm mattress can be added based on regional characteristics
Surface Measures (Single:LxW):1800mmx640mm(0ne pair:LxW):2020mmx670mm
Height Range :590mm-880mm
Power input:AC110-220V.50-60Hz
Power output:DC 24V3A
Transfer Distance of Board :>500mm
Maximum Load :160KG
Battery:(12V，20AH)x2pcs

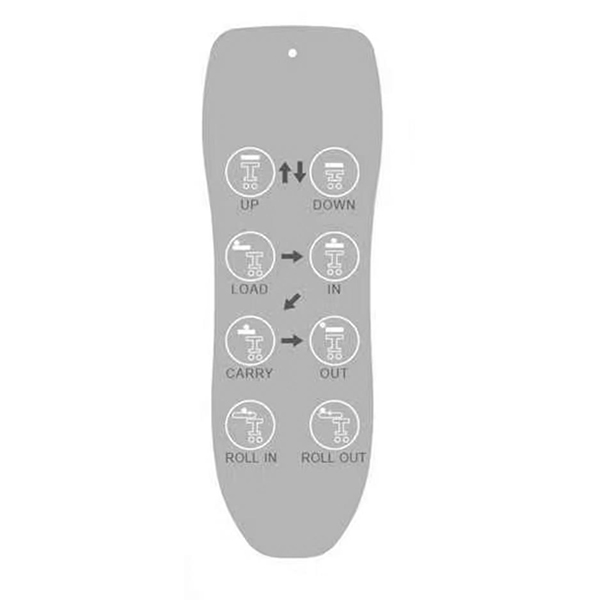

Standard accessories:lV pole 1pc/Power charger 1pc/ Hand controller 1pc
