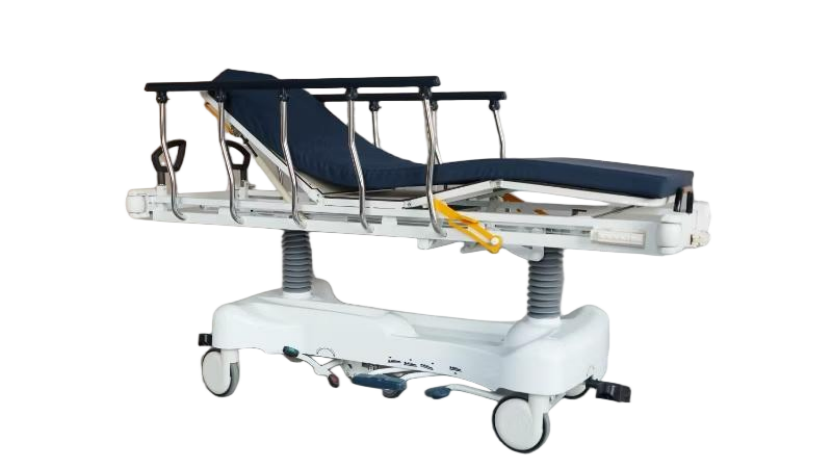

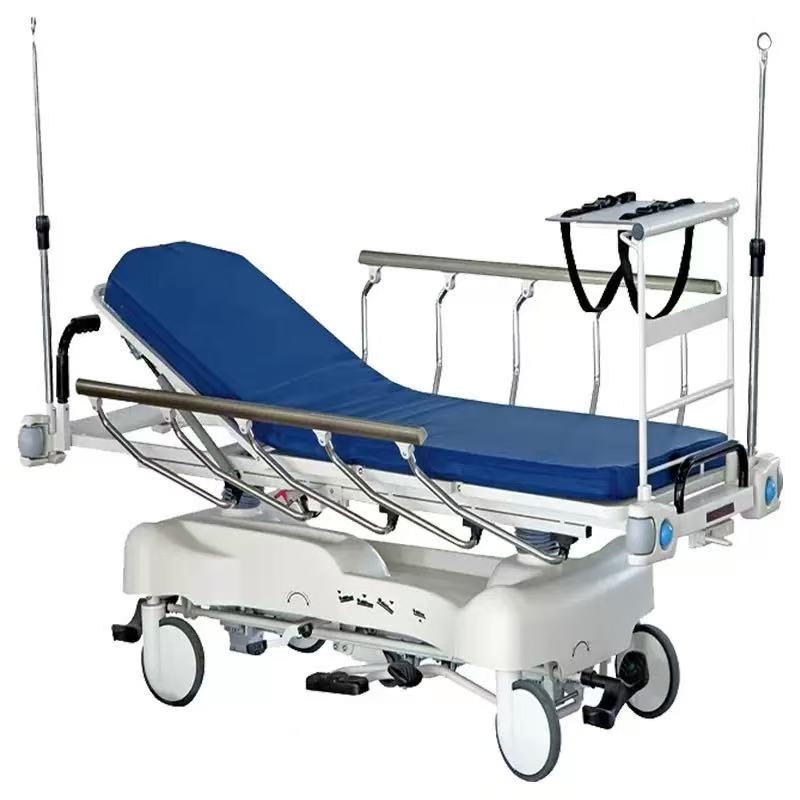

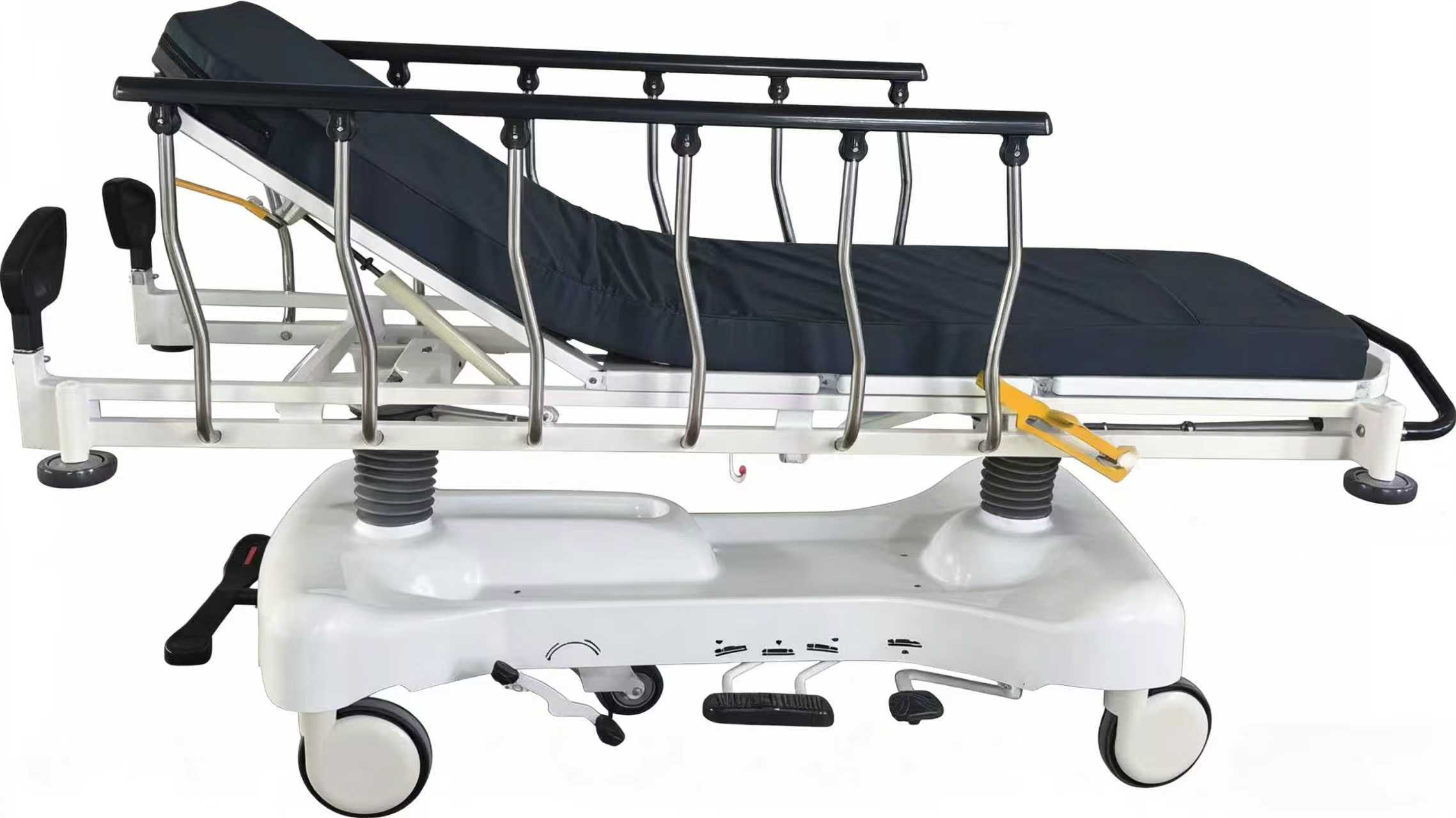

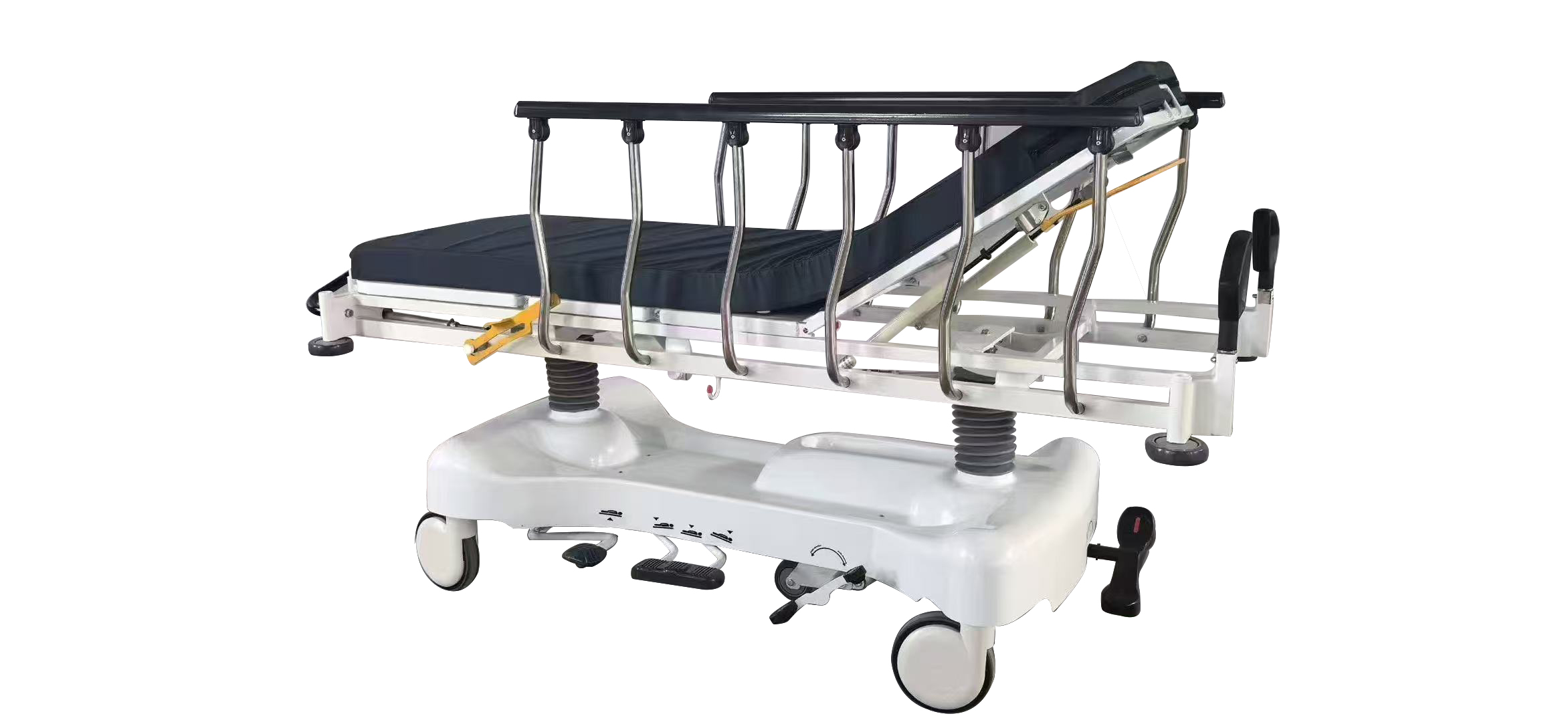

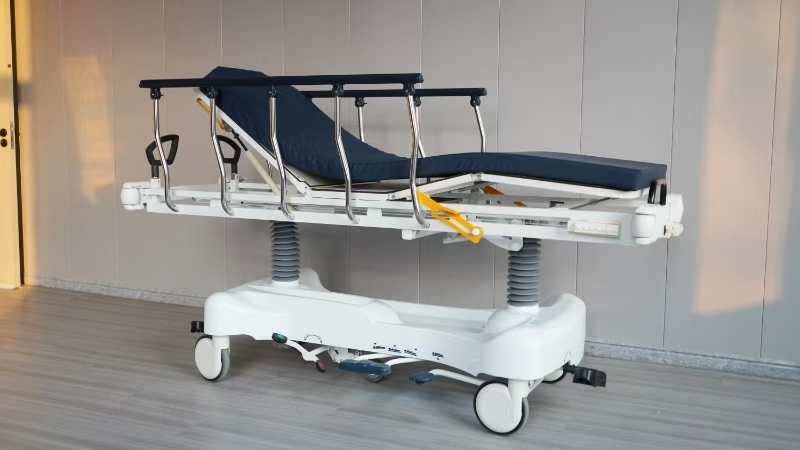

Full Body X-RAY Radiolucent Hydraulic Patient Stretcher
Model:SA-TF9
SA-TF9 is a full body X-RAY Radiolucent Hydraulic Patient Stretcher with double hydraulic system, 5 functions available
PRODUCT FEARURE
Hydraulic Patient Stretcher, collapsible/foldable stainless steel protective side railing.
Specifications:
Overall Dimensions: 1900*740mm
Height Adjustment (from bed surface to ground): 620-930mm
Bed Surface Dimensions: 1900*640mm
Backrest Angle Adjustment Range: 0-87°
Trendelenburg, Reverse Trendelenburg: 0-18°
6mm thick rigid radiolucent bed board for easy and safe x-rays use, support full body check, leg move
Central Control Wheel, diameter 200 mm, equipped with a central steering wheel and central fifth wheel diameter ≥100mm; retracted for free movement,
Configured high-quality dual hydraulic cylinder ,Safe load capacity ≥280kg.
Manual CPR Backrest lifting system: Controlled by 2 high-quality silent gas springs.
Standard Accessories:
Air matress:built-in zipper,7 cm PU waterprood mattress,
anti-static fire-resistant material mattress optional
8 IV pole sockets,1 IV pole
2 stainless steel urine bag hooks on each side, total 4 hooks
oxygen cylinder tray: Integrated ABS tray under bed body, can hold 4L oxygen cylinder,
convenient to use, tray load capacity 10Kg.
Device Platform Rack : Chart holder at foot of bed, tabletop can be placed horizontally forward or backward, usable as chart holder or monitoring station. Can be stored when not in use, space-saving. (Optional)
2 high-quality silent gas springs &dual hydraulic cylinder
4 antichoque casters en each couner of bed
Packing Dimensions: 2100*720*680mm Wooden Case Packagin g
