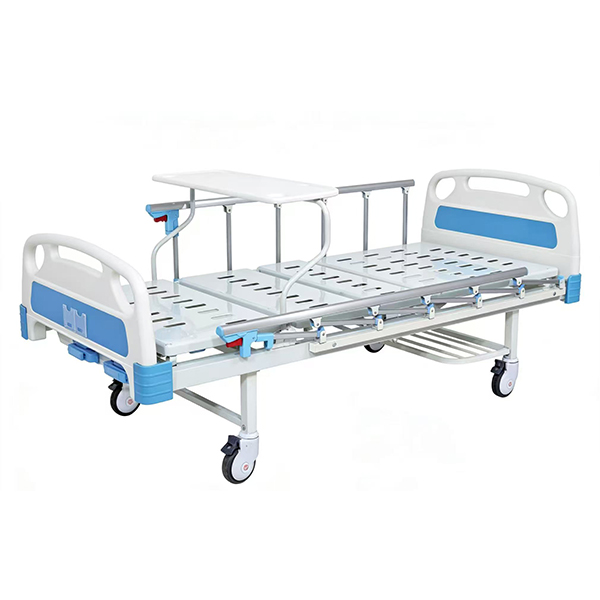

Manual Standard Double-crank Bed
Model: SAJB-13
PRODUCT FEARURE
The standard double-crank bed supports a load capacity of ≥240 kg, featuring manual backrest (0-70°) and leg section (0-40°) adjustment. It is equipped with six-position folding side rails, a flip‑over table with a gas‑spring buffer, 4 IV ports, 2 drainage hooks, a stainless‑steel IV pole, and a shoe rack. The bed rolls on four individually‑braked quiet casters, and includes a removable mattress with a breathable, wipe‑clean cover. The surface is finished with a durable duplex coating (electrophoresis + powder coating).
TECHNICAL PARAMETERS
- Overall Dimensions: 2080 × 960 × 500 mm (L × W × H)
- Frame: 40 × 80 × 1.5 mm steel tube; bed deck made of 1.2 mm cold rolled steel sheet, punched and stamped in one step; key support components formed from 3 mm thick steel plates via one time stamping; support arm spindle made of 3 mm thick seamless steel tube
- Side Rails: ø19 mm stainless steel tube with built in locking mechanism, single button quick positioning
- Crank System: Foldable ABS crank handles (180° foldable), fully enclosed with dust cover; lead screw features bidirectional slip limit and overload protection
- Casters: Four individually braked quiet casters, high strength and wear resistance
- Mattress: 80 mm total thickness (5 cm high density foam + 3 cm natural coir), covered with anti slip Oxford cloth (breathable, zip on design)
- Surface Treatment: Duplex coating – electrophoresis + powder coating
